Ore Feeding Equipment

Home / Products / Ore Feeding Equipment / Dk, DB Type Disc Feeder

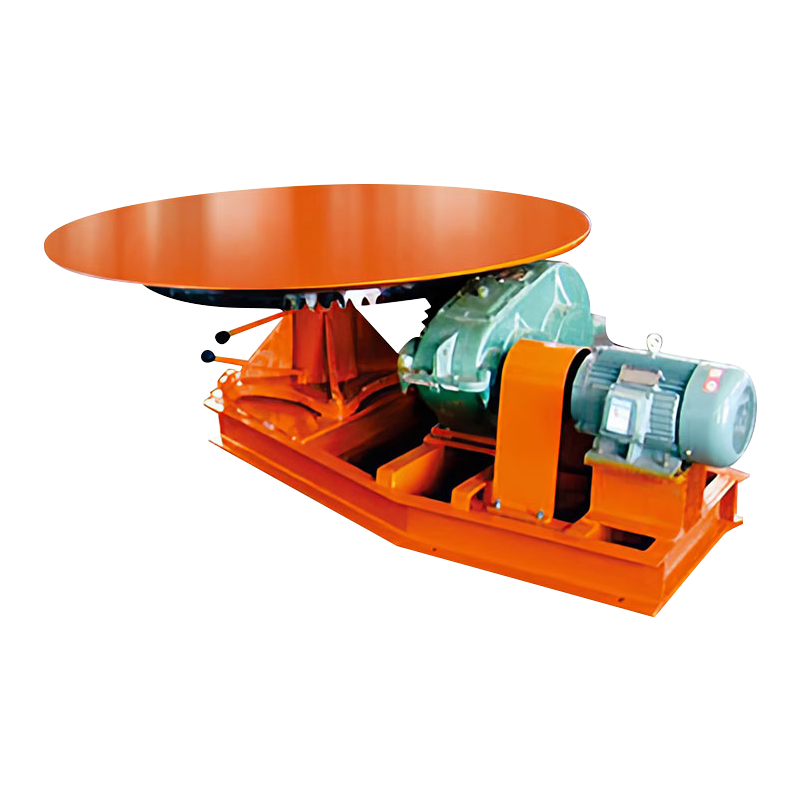

Dk, DB Type Disc Feeder

Dk, DB Type Disc Feeder

Disc feeder is a kind of consecutive capacity feeding equipment with wide use. It could evenly and consecutively feed materials into the next equipment, which is suitable for feeding various kinds of non-adhesive materials rather than powder materials with good liquidity. Materials that are appropriate for disc feeders include powder-shaped and chunk-shaped materials of ore, coal powder, cement, grog, limestone, and clay. The feeding amount could be adjusted, which is the common corollary equipment of general grinders and driers. Disc feeder is divided into two types of suspension and seat, each with the open type and closed type respectively. DK type is the open suspension type and DB type is the closed suspension type.

Type Disc diameter Maximum feeding particle size Motor Disc rotation speed Ore feeding capacity Weight
Type Power
mm mm Kw rpm m3/h t
DK600 600 ≤25 Y90L-6 1.1 8 3.9 0.405
DK800 800 ≤30 Y90L-6 1.1 8 7.6 0.5
DK1000 1000 ≤40 Y100L-6 1.5 7.5 16.7 0.79
DK1300 1300 ≤50 Y132S-6 3 6.5 28 1.11
DK1600 1600 ≤60 Y132M1-6 4 6 48.6 1.98
DK1800 1800 ≤70 Y132M2-6 5.5 5 60 2.83
DB600 600 ≤25 Y90L-6 1.1 8 3.9 1.2
DB800 800 ≤30 Y90L-6 1.1 8 7.6 1.5
DB1000 1000 ≤40 Y100L-6 1.5 7.5 16.7 2
DB1300 1300 ≤50 Y132S-6 3 6.5 28 3
DB1600 1600 ≤60 Y132M1-6 4 6 48 5
